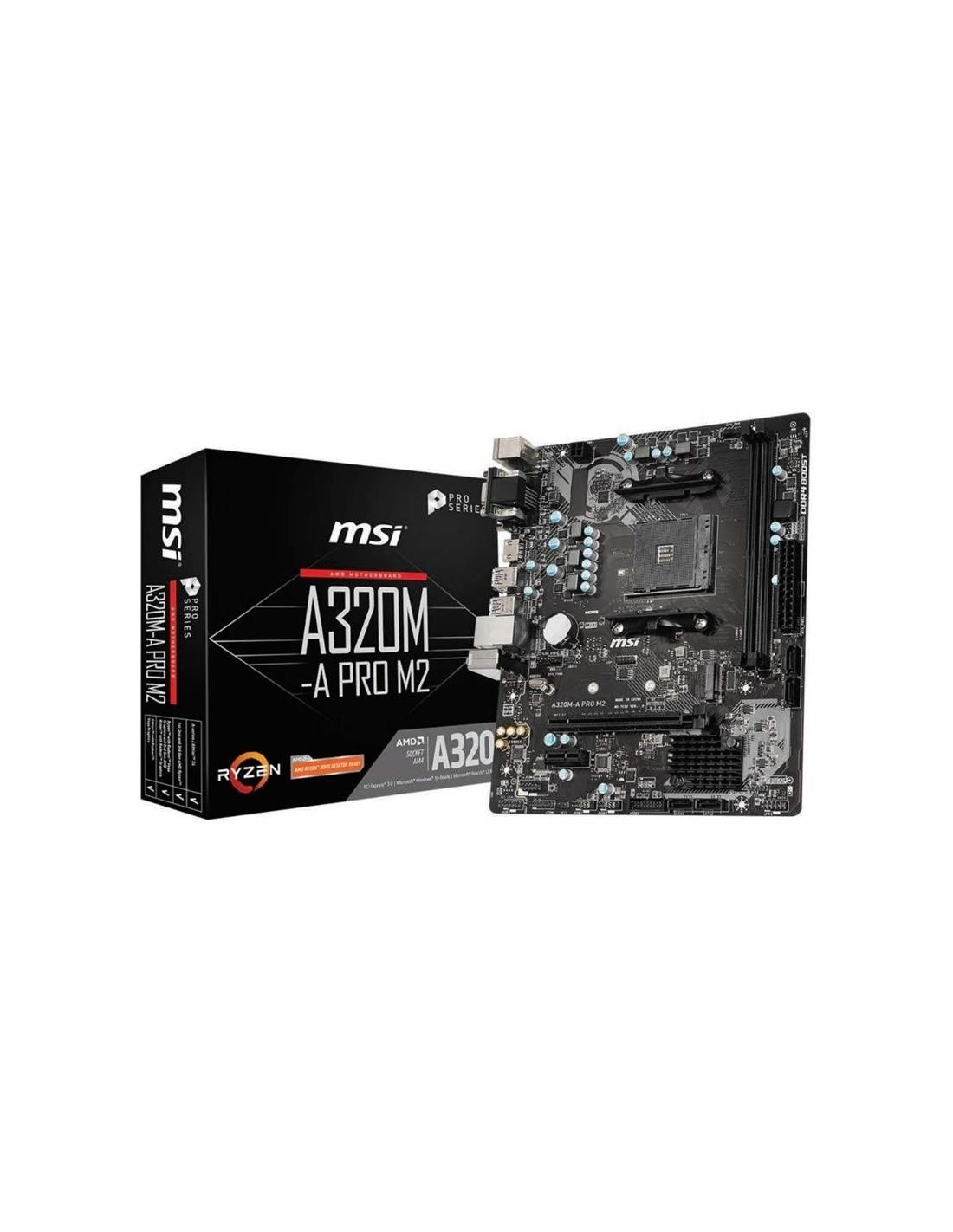

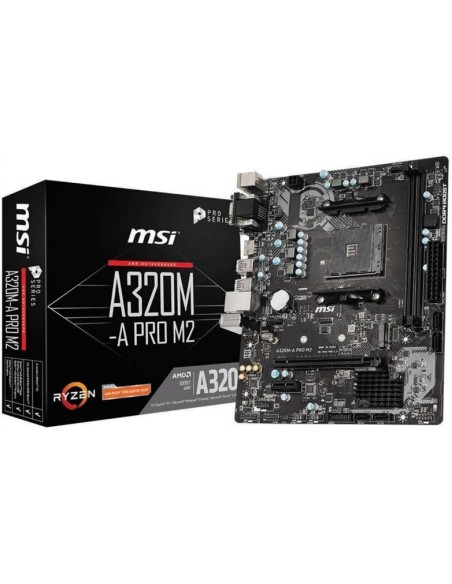

Placa base msi a320m pro-m2 v2 am4 2xddr4

Especificaciones:

PROCESSOR

Supports 1st, 2nd and 3rd Gen AMD® Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD® Ryzen™ with Radeon™ Graphics, Athlon™ with Radeon™ Vega Graphics, A-series and Athlon™ X4 Desktop Processors for Socket AM4

See supported processors

CHIPSET

AMD® 320 Chipset

MEMORY

2 x DDR4 memory slots, support up to 32GB
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)
Dual channel memory architecture
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
Please refer www.msi.com for more information on compatible memory.
See supported memory

SLOTS

1 x PCIe 3.0 x16 slot
Supports x16 speed
1st, 2nd and 3rd Gen AMD Ryzen™
Supports x8 speed
Ryzen™ with Radeon™ Vega Graphics
2nd Gen AMD Ryzen™ with Radeon™ Graphics
A-series
AthlonTM X4
Supports x4 speed
AMD® Athlon™ with Radeon™ Vega Graphics
PCIe 2.0 x1 slot

ONBOARD GRAPHICS

1 x VGA port, supports a maximum resolution of 2048x1280 @60Hz1,2
1 x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz1,2
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2
Only support when using the processor with GraphicsMaximum shared memory of 2048 MB

STORAGE

AMD® A320 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID 1 and RAID 10
1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 and SATA 6Gb/s
1st, 2nd and 3rd Gen AMD Ryzen™
Ryzen™ with Radeon™ Vega Graphics
2nd Gen AMD Ryzen™ with Radeon™ Graphics
Supports PCIe 3.0 x2 and SATA 6Gb/s
AMD® Athlon™ with Radeon™ Vega Graphics
A-series
Athlon™ X4
Supports 2242/ 2260/ 2280/ 22110 storage devices

USB

AMD® A320 Chipset
6 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN

1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Serial port connector
1x Clear CMOS jumper

DIMENSIONS

9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
m-ATX Form Factor
